bansheefromhell Posted December 15, 2012 Report Share Posted December 15, 2012 I purchased a set of headlights for my shee and was needing to know which wire do I need to splice into for power the original wires for the lights have been hacked off here is a photo of the wires coming from the stator it's and 03 Quote Link to comment Share on other sites More sharing options...
Dunes98 Posted December 15, 2012 Report Share Posted December 15, 2012 I'm pretty sure its the yellow with red stripe. Quote Link to comment Share on other sites More sharing options...
notsed Posted December 15, 2012 Report Share Posted December 15, 2012 hard to tell by that pic but you should have 6 wires coming from your stator, 4 go to the cdi, black is ground and yellow is lighting, at least on a stock stator Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 15, 2012 Author Report Share Posted December 15, 2012 got it thanks! Quote Link to comment Share on other sites More sharing options...

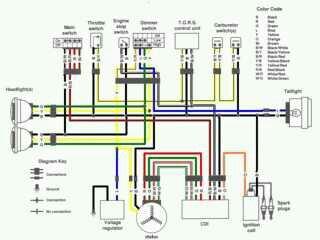

yzrmbsg Posted December 15, 2012 Report Share Posted December 15, 2012 Hers the whole diagram if you need it. Quote Link to comment Share on other sites More sharing options...
So Cal Suspension Posted December 15, 2012 Report Share Posted December 15, 2012 Sweet. Butt connectors. Do yourself a favor and solder and heat shrink those connections while you're working on your harness.. A little corrosion down the road and you'll be chasing ignition issues for days. Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 16, 2012 Author Report Share Posted December 16, 2012 Sweet. Butt connectors. Do yourself a favor and solder and heat shrink those connections while you're working on your harness.. A little corrosion down the road and you'll be chasing ignition issues for days.. did it Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 17, 2012 Author Report Share Posted December 17, 2012 ok I revved the engine and the lights blew, any ideas what would cause this?they are trail techs. Quote Link to comment Share on other sites More sharing options...
yzrmbsg Posted December 17, 2012 Report Share Posted December 17, 2012 ok I revved the engine and the lights blew, any ideas what would cause this?they are trail techs. Yup, you are not getting a good connection on your voltage regulator. Gotta make sure the ground (the regulator itself is screwed in tight) and the blue wire is connected well. Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 17, 2012 Author Report Share Posted December 17, 2012 ok I'll try that when my new bulbs come in I need to try it with some cheap lights the replacement bulbs are not too cheap Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 17, 2012 Author Report Share Posted December 17, 2012 that's the problem, I don't have a goddamn voltage regulator. how does it splice into the wiring, I wired the lights in a circuit starting from the yellow wire and back to the black ground to the stator Quote Link to comment Share on other sites More sharing options...
tedd1 Posted December 17, 2012 Report Share Posted December 17, 2012 One wire comes out of the regulator. Connect it to the yellow wire and mount the regulator to the frame. Quote Link to comment Share on other sites More sharing options...
yzrmbsg Posted December 18, 2012 Report Share Posted December 18, 2012 One wire comes out of the regulator. Connect it to the yellow wire and mount the regulator to the frame. WHS^. Bulbs are cheap if you just buy the bulb by its part number and not a "trail tech" branded light. If I remember right, they were only 3 or 4 bucks a pop, they were sylvania brand. Its just a generic bulb used in many different applications. Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 24, 2012 Author Report Share Posted December 24, 2012 ok, I got all of the parts in, new bulbs and regulator does the wire on the regulator just "T" into the yellow wire? Quote Link to comment Share on other sites More sharing options...
bansheefromhell Posted December 24, 2012 Author Report Share Posted December 24, 2012 anyone?, this is causing me to go insane, I can wire it straight from the yellow from the stator, through the lights and back to the black ground on the stator I'm just needing some help in how to splice in the regulator in a little more detail than "connect it to the yellow". in the diagram it looks to just splice into the yellow like a "T", any detailed help would be greatly appreciated I'm starting from nothing since everything was hacked off but the cdi and coil Quote Link to comment Share on other sites More sharing options...
